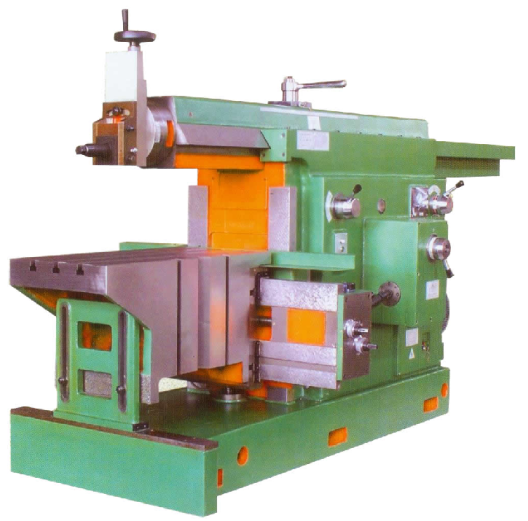

技术规格 MAIN SPECIFICATIONS
|
最大刨削长度 |
Max.cutting length |
1000mm |
|
工作台最大横向移动距离 |
Max.horizontal travel of table |
800mm |
|
滑枕底面到工作台面的最大距离 |
Max.distance from ram bottom to table surface |
380mm |
|
工作台最大垂直移动距离 |
Max.table vertical travel |
320mm |
|
工作台上工作面尺寸(长*宽) |
Table surface dimensions(L*w) |
1000*500mm |
|
刀架行程 |
Max.vertical travel of tool carrior |
160mm |
|
刨刀柄最大尺寸(宽*厚) |
Max.size of tool shank(W*H) |
30*45mm |
|
刀架转角度 |
Max. swivel of tool carrier |
±45° |
|
滑枕每分钟往复次数(8级) |
Number of ram strokes per minute(8steps) |
8,11,16,23,32,45,64,90 |
|
工作台进给量范围 |
Range of table feeds per ram reciprocation |
|
|
水平进给(10级) |
Cross feed (10steps) |
0.25-2.50mm |
|
垂直进给(10级) |
Vertical geed(10steps) |
0.13-1.27mm |
|
工作台中央T型槽宽 |
Width of central T-slot of table |
22mm |
|
主电机功率 |
Power of rnian motor |
7.5kw |
|
外形尺寸(长*宽*高) |
Overall dimensions(L*W*H) |
3507*1455*1761mm |
|
重量 |
Weight(approx) |
4500kg |
