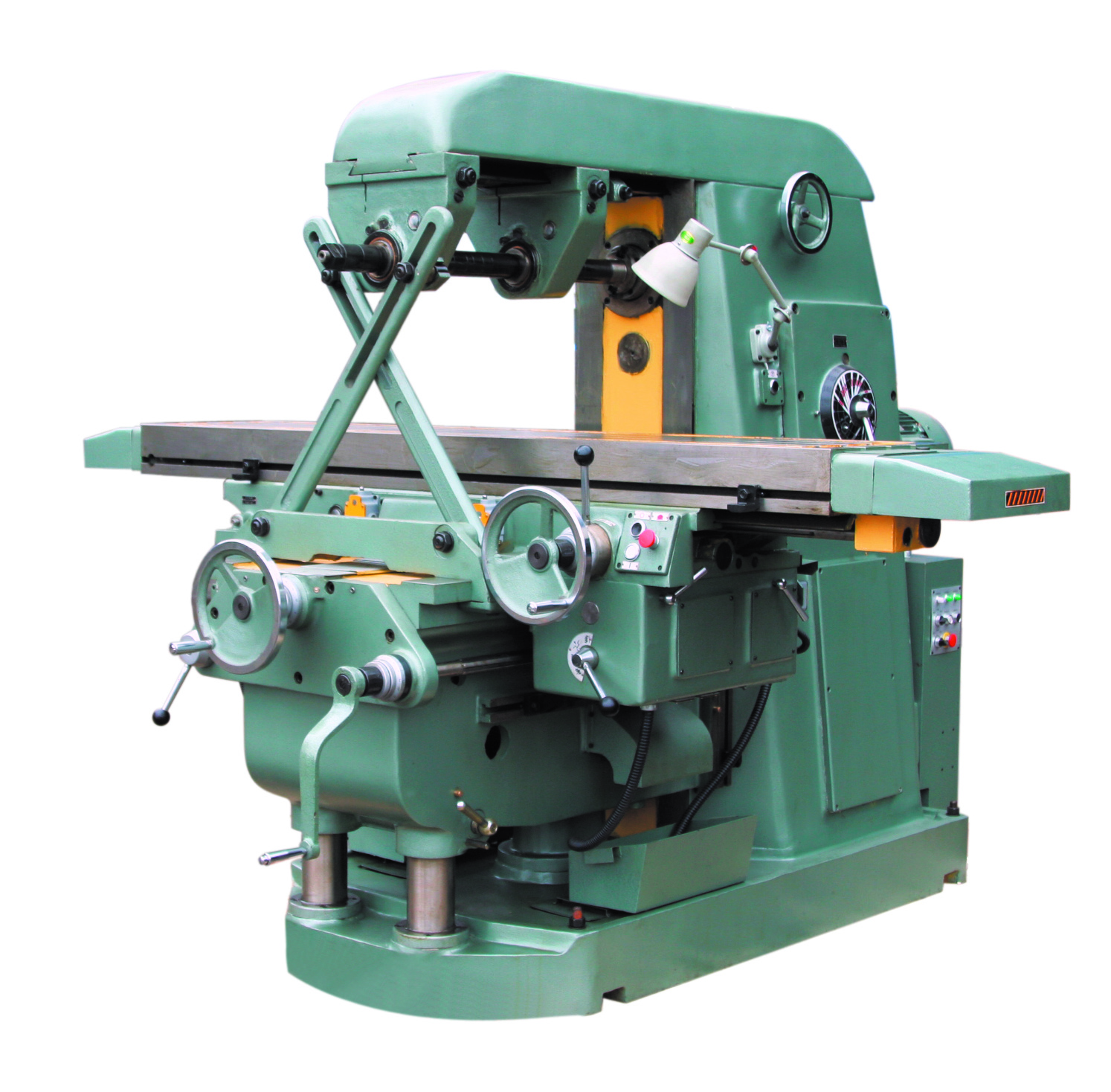

上海四机-卧式升降台铣床X6042系列产品
参数：
| 项目(Item) | X6042/X6042-L | X6042-W/X6042-LW | X6042-H2/X6042-H4 | |||||
| 工作台台面尺寸(宽×长) Table size(W×L) | 425×2000/425×2500* | 500×2000/500×2500* | 425×2000 | |||||
| T型槽(槽宽×数量×间距) | 18×3×90 | 18×3×90 | 18×3×90 | |||||
| 工作台最大承重Max load of table | 800kg | 800kg | 800kg | |||||
| 主轴中心线至工作台面距离Distance from spindle nose to table surface | 70~470mm | 70~470mm | 270~670/470~870mm* | |||||
| 主轴中心线至悬梁距离Distance from spindle center to the overarm | 180mm | 180mm | 180mm | |||||
| 主轴锥孔Spindle nose taper | 50 7:24 | 50 7:24 | 50 7:24 | |||||
| 刀杆直径Diameters of milling-knife pole | 40mm | 40mm | 40mm | |||||
| 主轴转速范围Spindle speed | (20级)18~1400rpm | (20级)18~1400rpm | (20级)18~1400rpm | |||||
| 工作台纵向行程Y travel of the table | 1250/1600mm* | 1250/1600mm* | 1250mm | |||||
| 工作台横向行程X travel of the table | 400mm | 400mm | 400mm | |||||
| 工作台垂向行程Z travel of the table | 400mm | 400mm | 400mm | |||||
| 进给速度范围(纵向)Feed speed of the table(Longitudinal) | 10~1250mm/min | 10~1250mm/min | 10~1250mm/min | |||||
| 进给速度范围(横向)Feed speed of the table(Transverse) | 10~1250mm/min | 10~1250mm/min | 10~1250mm/min | |||||
| 进给速度范围(升降)Feed speed of the table(Vertical) | 2.5~315mm/min | 2.5~315mm/min | 2.5~315mm/min | |||||
| 主轴电机功率Spindle motor power | 11kw | 11kw | 11kw | |||||
| 机床外形尺寸(长×宽×高)Overall dimensions(L×W×H) | 2770×2530×1950/3270×2530×1950* | 2770×2530×1950/3270×2530×1950* | 2770×2530×2150/2770×2530×2350* | |||||
| 机床重量(Weight of machine) | 5050kg/5200* | 5160kg/5350* | 5450kg/5650* | |||||
